Redback Sports System to suit Holden Calais (01/2004 - 01/2006), Commodore (01/2004 - 2006)

Fits your vehicle Does not fit your vehicle clear vehicle

SKU: K-RPM15685
$1,655.00
This product currently isn't available for purchase online.

Please contact retail@swd.com.au to enquire about an alternative purchasing method.


Dual 2 1/2" Complete System - Dual Outlet Rear. Suits models with IRS.

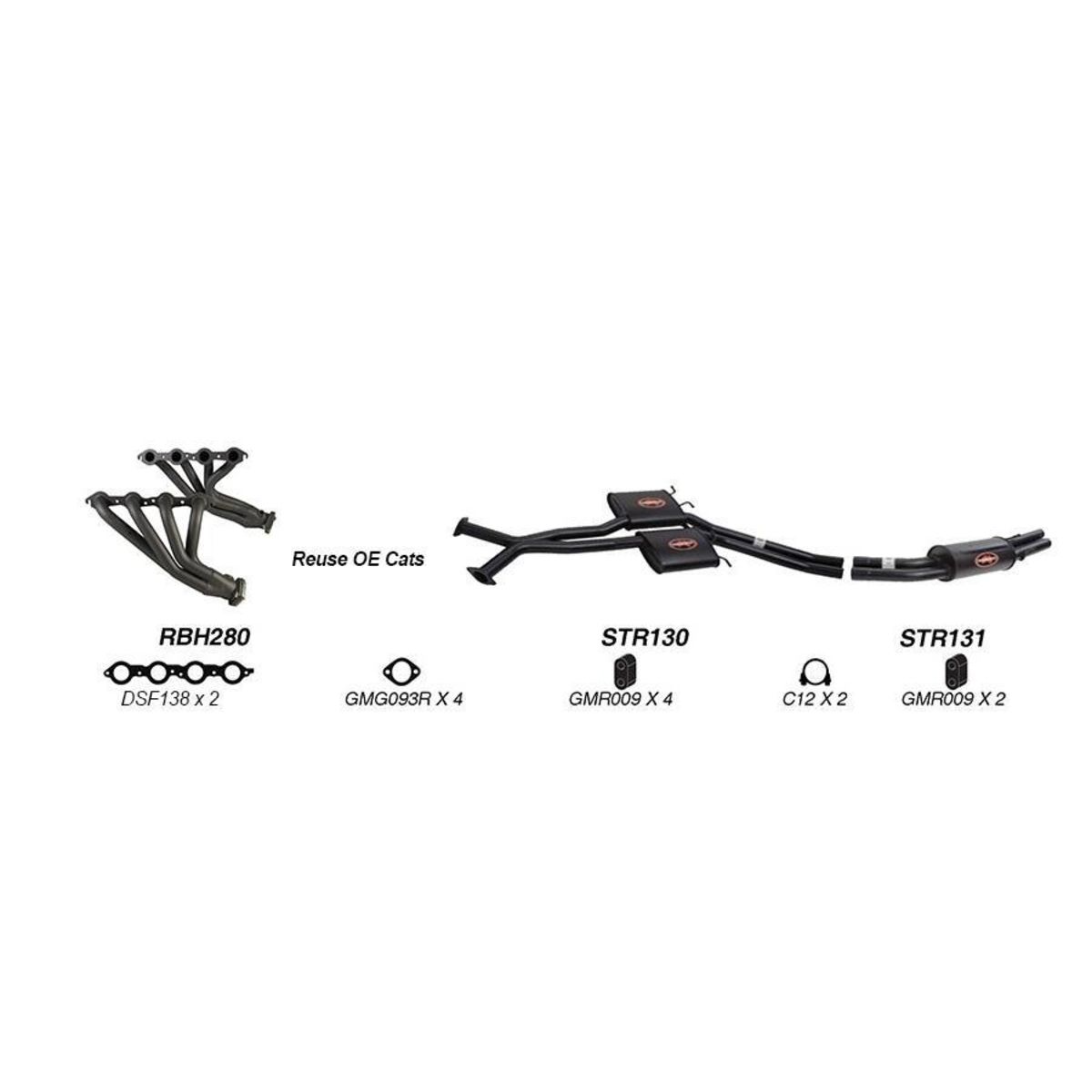

Kit Components

SKU Description
RBH280 Redback Headers to suit Holden Commodore (01/2004 - 01/2007), Calais (01/2004 - 01/2006),
STR130 Holden Commodore VT-VZ Sedan 2.5\ Sports Centre assembly with Mufflers,
Redback Sports Pipes to suit Holden Commodore Sedan & Monaro Coupe VT-VZ Supercharged V6 & 5.7L V8 - 2 1/2\ Catback dual pipe front muffler assembly with X-Pipe
STR131 Redback Sports System to suit Holden Commodore (01/1997 - 2006), Calais (01/1997 - 01/2006), Redback Sports Pipes to suit Holden Commodore VT-VZ Sedan 5.7L V8 - Twin 2 1/2\ Catback dual pipe rear muffler assembly
DSF138 Redback Gaskets Exhaust Manifold to suit Holden Commodore (01/1997 - 09/2015), Calais (01/1999 - 2016), Statesman (01/1999 - 01/2010), Monaro (01/2001 - on), Caprice (01/1999 - 01/2004), HSV GTS (08/2006 - 05/2013), Maloo (10/2007 - 03/2008), Senator (08/2006 - 05/2013), Clubsport (08/2006 - 05/2013), DSF Manifold Gaskets - Holden VT-VZ Commodore Gen III, LS1 engine 5665cc & Gen IV, LS2, L77 & L98 engine 5967cc, V8
GMG093R Redback 2-Bolt Flange Gasket Commodore Cat Gasket,
Redback 2-Bolt Flange Gasket Commodore Cat Gasket

  • 2 Bolt Flange Gasket
  • Inside diameter 65mm
  • Bolt-hole centre-to-centre distance 106mm
  • Bolt-hole diameter 11.3mm
  • Total length 133mm
  • Total width 98mm
  • Material DSF
GMR009 Redback Exhaust Rubber to suit HSV GTS (1997 - 03/2008), GTO (03/2001 - 08/2003), Maloo (03/2001 - 03/2008), Clubsport (10/1991 - 06/2008), Senator (03/1992 - 03/2008), Sv300 (09/2001 - 12/2001), Maloo R8 (03/2001 - 03/2008), XU8 (01/1999 - 1999), Avalanche (01/2004 - 01/2006), Sv6000 (08/2005 - 2006), Manta (09/1997 - 01/1999), XU6 (03/1998 - 2002), Clubsport R8 (10/2004 - 2008), Coupe (12/2001 - 2004), Holden Calais (01/1988 - 2016), One Tonner (01/2003 - 01/2005), Commodore (08/1988 - 10/2017), Statesman (01/1990 - 01/2006), Crewman (01/2003 - 01/2007), Caprice (01/1990 - on), Monaro (01/2001 - 09/2004), Adventra (01/2003 - 01/2009), Toyota Lexcen (01/1991 - 01/1995), Exhaust Rubbers - Holden VS & VT Commodore, Front
C12P-1 Redback Clamps U Bolt Plated to suit Iveco, Saab, Nissan & Holden,
Redback Clamps U Bolt Plated to suit Iveco Turbo Daily (08/1995 - 02/2002), Saab 900, 99 (01/1984 - 06/1994), Nissan 300ZX (01/1984 - 01/1990), Holden Crewman (01/2004 - 01/2007)

  • U-Bolt Clamps - Inside diameter 67mm (2-5/8\), Zinc Plated, Packed Bag

Reviews

Specifications

  • tube size: 067mm (2 5/8")
  • muffler option: With Centre & Rear Muffler
  • header design: Tuned
  • transmission: Both A/M
  • material type: Zinc Plated
  • system layout: Engine Back System
  • coating: Standard Heat-Proof Paint
  • cat option: With Cat
  • header primary size: 041mm (1 5/8")
  • fits power steering: Yes
  • egr fitting: N/A
  • header outlet size: 063mm (2 1/2")
  • fits with air conditioning: Yes
  • fitting time approx: 3 Hr
  • vehicle make: Holden
  • pack size: 10
  • width: 98
  • length: 133mm
  • inside diameter: 65mm
  • tube size out: 067mm (2 5/8")
  • type: U-Bolt
  • tube size in: 067mm (2 5/8")
