Redback Sports System to suit Holden Commodore (01/1997 - 01/2002)
Redback Sports System to suit Holden Commodore (01/1997 - 01/2002)

Redback Sports System to suit Holden Commodore (01/1997 - 01/2002)

Fits your vehicle Does not fit your vehicle clear vehicle
SKU: K-R3M14683
$2,029.00
This product currently isn't available for purchase online.

Please contact retail@swd.com.au to enquire about an alternative purchasing method.

Dual 2 1/4" to Single 3" System (Reuse OE Cats) - Single Outlet Rear. Suits models with IRS.

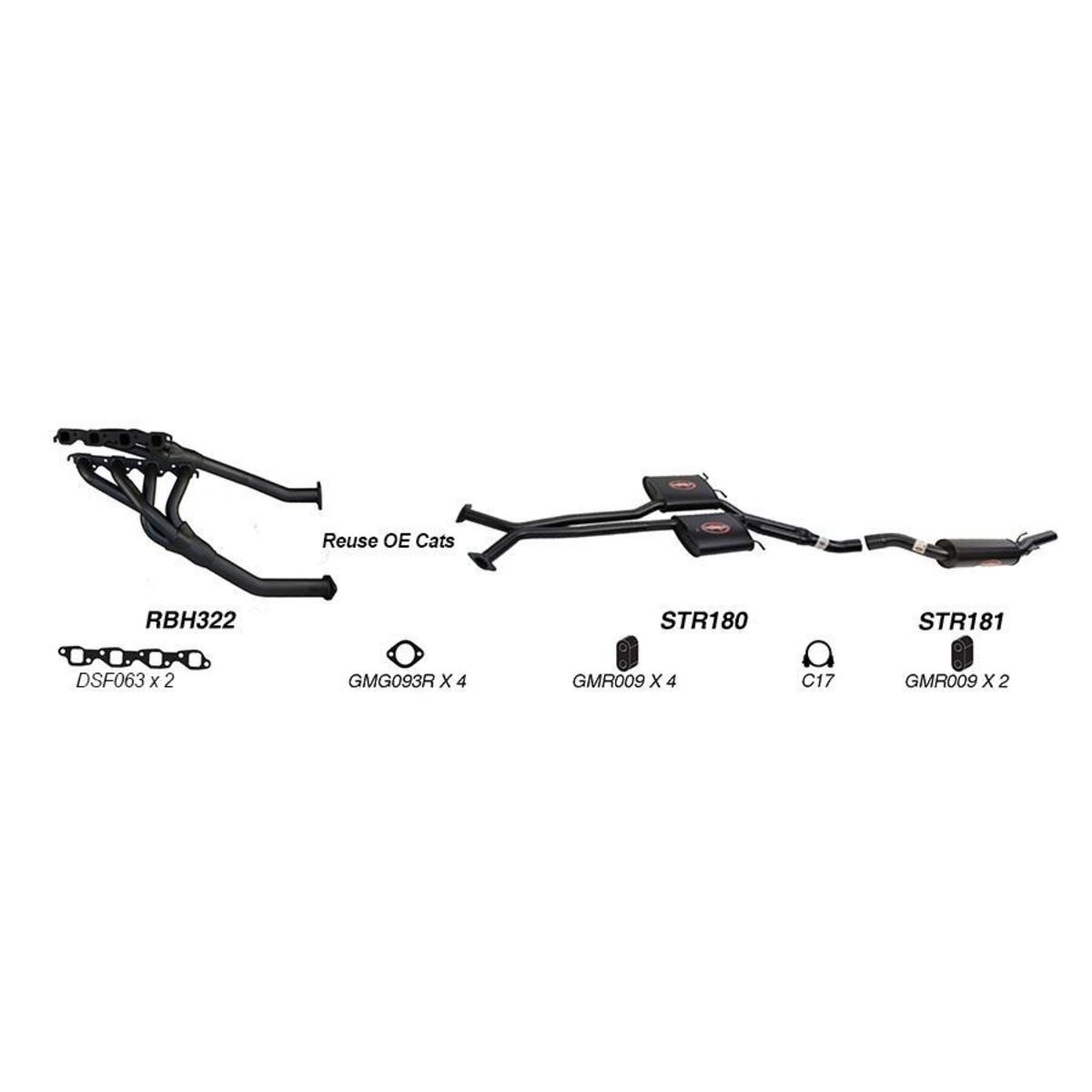

Kit Components

SKU Description
STR180 Redback Exhaust System to suit Holden Caprice (01/1999 - 2006), Statesman (01/1999 - 2006), Commodore (01/1997 - 01/2007), HSV Senator (09/1997 - 2000), Maloo (03/2001 - 09/2007), Maloo R8 (03/2001 - 2007), Avalanche (01/2004 - 01/2006), Redback Sports Pipes to suit Holden Commodore VU-VX Ute & Wagon 5.7L V8 - Twin 2 1/2\ Catback front muffler assembly
DSF063 Redback Gasket to suit Holden Statesman (01/1990 - 1999), Commodore (01/1988 - 01/2002), Caprice (01/1990 - 1999), Calais (01/1989 - 01/2000), DSF Manifold Gaskets - Holden VN-VP Commodore EFI 5.0L (4987cc) & 5.7L (5737cc), V8, Square port
GMG093R Redback 2-Bolt Flange Gasket Commodore Cat Gasket,
Redback 2-Bolt Flange Gasket Commodore Cat Gasket

  • 2 Bolt Flange Gasket
  • Inside diameter 65mm
  • Bolt-hole centre-to-centre distance 106mm
  • Bolt-hole diameter 11.3mm
  • Total length 133mm
  • Total width 98mm
  • Material DSF
GMR009 Redback Exhaust Rubber to suit HSV GTS (09/1997 - 2008), GTO (03/2001 - 08/2003), Clubsport (10/1991 - 06/2008), Senator (03/1992 - 03/2008), Maloo (03/2001 - 03/2008), Sv300 (09/2001 - 12/2001), Maloo R8 (03/2001 - 03/2008), XU8 (01/1999 - 1999), Avalanche (01/2004 - 01/2006), Sv6000 (08/2005 - 2006), Manta (09/1997 - 01/1999), XU6 (03/1998 - 2002), Clubsport R8 (10/2004 - 2008), Coupe (12/2001 - 2004), Holden Calais (01/1988 - 2016), One Tonner (01/2003 - 01/2005), Commodore (08/1988 - 10/2017), Statesman (01/1990 - 01/2006), Crewman (01/2003 - 01/2007), Caprice (01/1990 - on), Monaro (01/2001 - 09/2004), Adventra (01/2003 - 01/2009), Toyota Lexcen (01/1991 - 01/1995), Exhaust Rubbers - Holden VS & VT Commodore, Front
C17 Redback Clamp to suit Holden Statesman (01/1999 - 01/2006), Caprice (01/1999 - 2006), Commodore (01/1997 - 01/2007), Calais (01/1997 - 01/2006), HSV Maloo R8 (03/2001 - 2007), Clubsport (01/1997 - 2006), Manta (09/1997 - 1999), Maloo (03/2001 - 2007), Senator (09/1997 - 07/2006), GTS (1997 - 2000), Avalanche (01/2004 - 01/2006), Sv6000 (08/2005 - 2006), XU8 (01/1999 - 1999), Clubsport R8 (10/2004 - 2006),
Heavy Duty U-Bolt Clamps - Inside diameter 78mm (3-1/8\), Flat bar, Zinc Plated

Reviews

Specifications

  • material type: Zinc Plated
  • transmission: Both A/M
  • tube size: 079mm (3 1/8")
  • system layout: Engine Back System
  • coating: Standard Heat-Proof Paint
  • muffler option: With Centre & Rear Muffler
  • header design: Tuned
  • cat option: Re Use OE Cat(s)
  • vehicle make: Holden
  • pack size: 10
  • width: 98
  • length: 133mm
  • inside diameter: 65mm
  • tube size out: 079mm (3 1/8")
  • type: U-Bolt Heavy Duty
  • tube size in: 079mm (3 1/8")
